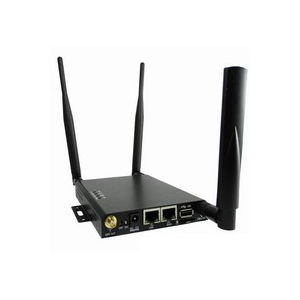

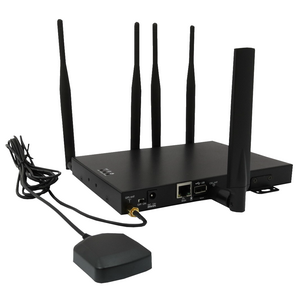

Wireless Gateway/Router



 Model No. MG700MG800
Hardware
CPU MIPS24KEc,580MHzMIPS24KEc,580MHz
RAM 1G bit DDR2 RAM1G bit DDR2 RAM
Flash Memory 128M Bit Flash128M Bit Flash
WiFi 802.11 b/g/n802.11 b/g/n/ac
Antenna 2T2R2T2R or MIMO
Linux OS Linux 2.6.3Linux 2.6.3
Cellular System(option1) WCDMA/CDMA Combo,(WCDMA:800/850/900/1900/2100MHz)/(CDMA:850/900/1800/1900MHz)WCDMA/CDMA-USA Combo,(WCDMA:800/850/900/1900/2100MHz)/(CDMA:850/900/1800/1900MHz)
Cellular System(option2) CDMA 1xRTT,(Band 2/Band5:800/1900MHz)CDMA 1xRTT - USA,(Band 2/Band5 :800/1900 MHz)
Cellular System(option3) WCDMA/UMTS (Default), (Band 2/Band1:850/2100 MHz)WCDMA/UMTS,(Band 2/Band1:850/2100 MHz)
Cellular System(option4) 4G LTE,(Band 13/Band7/20)4G LTE (Default),(Band 1/3/7/8/20:800/900/1800/2100/2600 MHz)
 Connector
RJ45 2port(LAN and WAN)4 Max.(WANx1 + LANx3 Max.)
Serial Port 3 Port (RJ45 Type, support for GPS/Bluetooth/Zigbee, Option)3 Max.
TFlash/Micro SD 11
USB Port 11 (power: 5V DC)
SIM Card 11 or 2 (Dual SIM)
WiFi Antenna 2 (Option, Embedded or external )2 (2.4G only) or 4 (dual band)
GSM Antenna 1 (Option, Embedded or external)1 or 2 (MIMO)
GPIO/Relay 2( Relay Normal Open)2
 Specific
Battery 1100mAH(Option)
Reset Button 1
Dimension 90 x 130 x 20mm
 Power
Power In 12V12V (Standard) or 36V (Optional)
Power consumption Max. 1AMax. 2A
 Wireless Interface
Standard Compliance IEEE 802.11 b/g/nIEEE 802.11 b/g/n/ac
Transceiver Type 2T2R2T2R or MIMO
Mode Activity(AP / Client mode)Activity (AP/Client mode)
Range Up to 50 metersUp to 50 meters
Speed Up to 300 MbpsUp to 300 Mbps
Wireless Security 1.WEP 64 bit, WEP 128 bit, WPA, WPA2 / 2.Password protected access1.WEP 64 bit,WEP 128 bit,WPA,WPA2 / 2.Password protected access
 Network
WAN DDNS/DHCP/Static IP/PPPOE/ 3G/4G Router/WISP(Client WiFi)DDNS/DHCP/Static IP/PPPOE/ 3G/4G Router/WISP(Client WiFi)
LAN Ethernet LAN ports / DHCP server on LAN / Static routing rulesEthernet LAN ports / DHCP server on LAN / Static routing rules
VPN IPSEC NAT-T and PPTP VPN pass-through. IPSEC Server supports 5-VPN client connection. VPN pass through Site-to-Site VPNIPSEC NAT-T and PPTP VPN pass-through / IPSEC Server supports 5-VPN client connection / VPN pass through / Site-to-Site VPN
Events Reporting • Event Types: Power • Report/Action Types: SMS, Email, SNMP Trap, Relay Output • Event Types: Power • Report/Action Types: SMS, Email, SNMP Trap, Relay Output
 SSID x 2
WDS support 4 point
  Relay for GPIO control X2
  Serial to WiFi ( TCP server/TCP Client/UDP mode)
  System log
 Certification UL60950; FCC ID:VWM-M2M; FCC Part15B; Part15C
