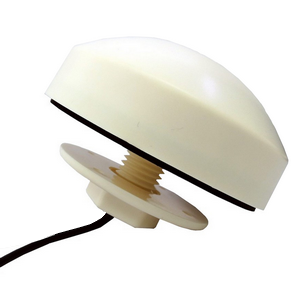

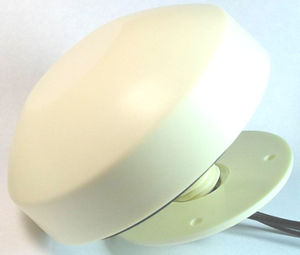

Cellular/LTE Antenna




Model No. GCRC2GCRC1CE400
LTE 700/800MHz N/A
AMPS(804~896MHz)
GSM(824~960MHz)
DCS 1800(1710~1880MHz)
PCS 1900(1850~1990MHz)
WCDMA(1920~2170MHz)
LTE 2600MHz
Peak Gain 3~5dBi(with 40*40cm Ground Plane)4~6dBi(with 40*40cm Ground Plane)1.94~5.85 dBi
Pattern Type Omni-directionalOmni-directionalOmni-directional
Weight (Without Cable) 280 grams Max.280 grams Max.22 grams max.
Housing Material ABS/ASA(Option)ABS/ASA(Option)ABS
Dimension 100mm Dia.× 67mm(39mm)100mm Dia.× 67mm(39mm)13.5x(176.6±2mm /150.4±2mm)
Connector CustomCustomSMA male
RF Cable CustomCustomN/A
Mounting Permanent mountPermanent mountN/A
Housing Color WhiteWhiteBlack
Waterproof IP56/IP67(Option)IP56/IP67(Option)N/A
